Multiple-Disc Brake, Location/Task/Design/Function: Notes

WARNING: This page is about a different car, the 2004 Mercedes-Benz C230 and 2003 Mercedes-Benz C230. However, it is still accessible from the selected car via links, so may be relevant.

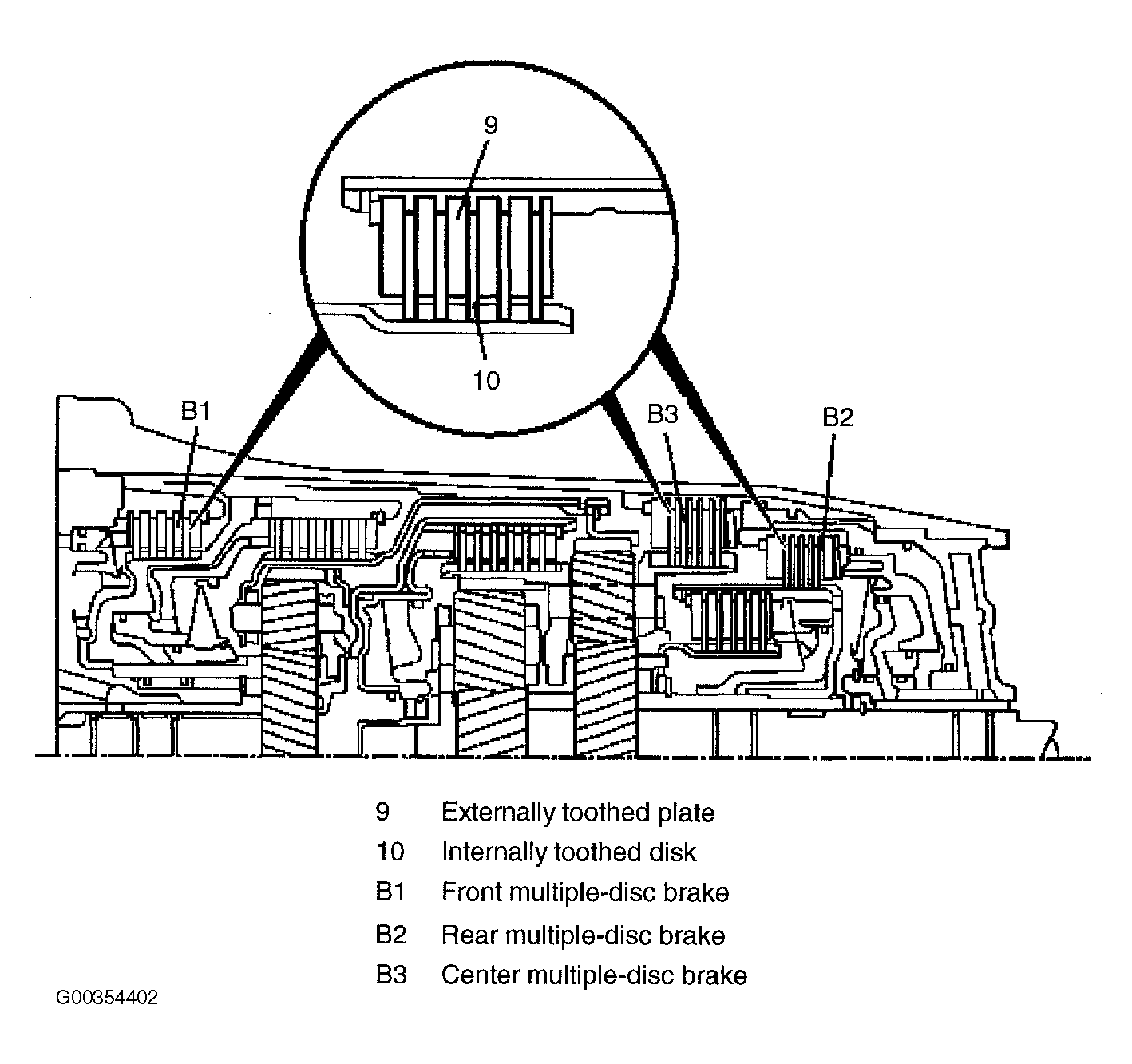

Fig 1: Multiple-Disc Brake, Location/Task/Design/Function
G00354402Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

  1. Multiple-Disc Brake, Location

    Three multiple-disc brakes arranged as the front, center and rear multiple-disc brake (B1, B3, B2) are located in the planetary gear sets in the transmission housing.

  2. Multiple-Disc Brake, Task

    Brace the ring gear, sun gear or planet carrier of a planetary gear set against the transmission housing in order to transmit the drive torque.

  3. Multiple-Disc Brake, Design

    A multiple-disc brake consists of a number of internally toothed discs (10) on an internally toothed disc carrier and externally toothed discs (9) on an externally toothed disc carrier, which is rigidly connected to the transmission housing.

  4. Multiple-Disc Brake, Function

    See MULTIPLE-DISC BRAKE, FUNCTION  .
