Electric Control Module, Design

WARNING: This page is about a different car, the 2004 Mercedes-Benz C230 and 2003 Mercedes-Benz C230. However, it is still accessible from the selected car via links, so may be relevant.

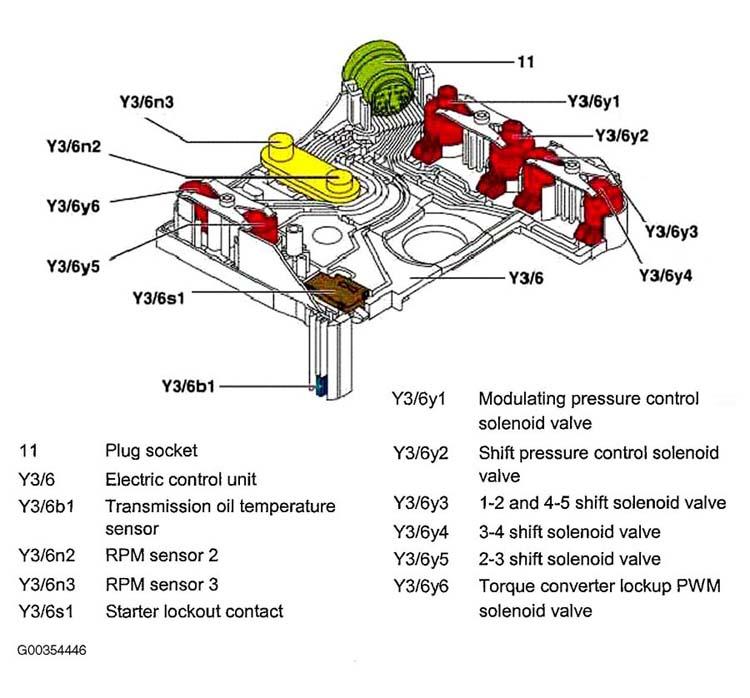

Fig 1: Electric Control Module, Design

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Structure

The electrical control unit (Y3/6) consists of a supporting body made from plastic, in which the electrical components - RPM sensors 2 and 3 (Y3/6n2, Y3/6n3), the regulating solenoid valves (Y3/6y1, Y3/6y2), the shift solenoid valves (Y3/6y3, Y3/6y4, Y3/6y5), the PWM convertor lockup solenoid valve (Y3/6y6), the starter lockout contact (Y3/6s1) and transmission oil temperature sensor (Y3/6b1) - are combined.

Conductor track integrated into the shell connect the electric components to a plug connection (11).

The connection to the wiring harness on the vehicle side and the ETC control module (N15/3) is made via this 13-pin connector (11) with a bayonet lock.

With the exception of the solenoid valves, all other electric components are fixed to the conductor tracks.
