Shift Lock Override, Function

WARNING: This page is about a different car, the 2004 Mercedes-Benz C230 and 2003 Mercedes-Benz C230. However, it is still accessible from the selected car via links, so may be relevant.

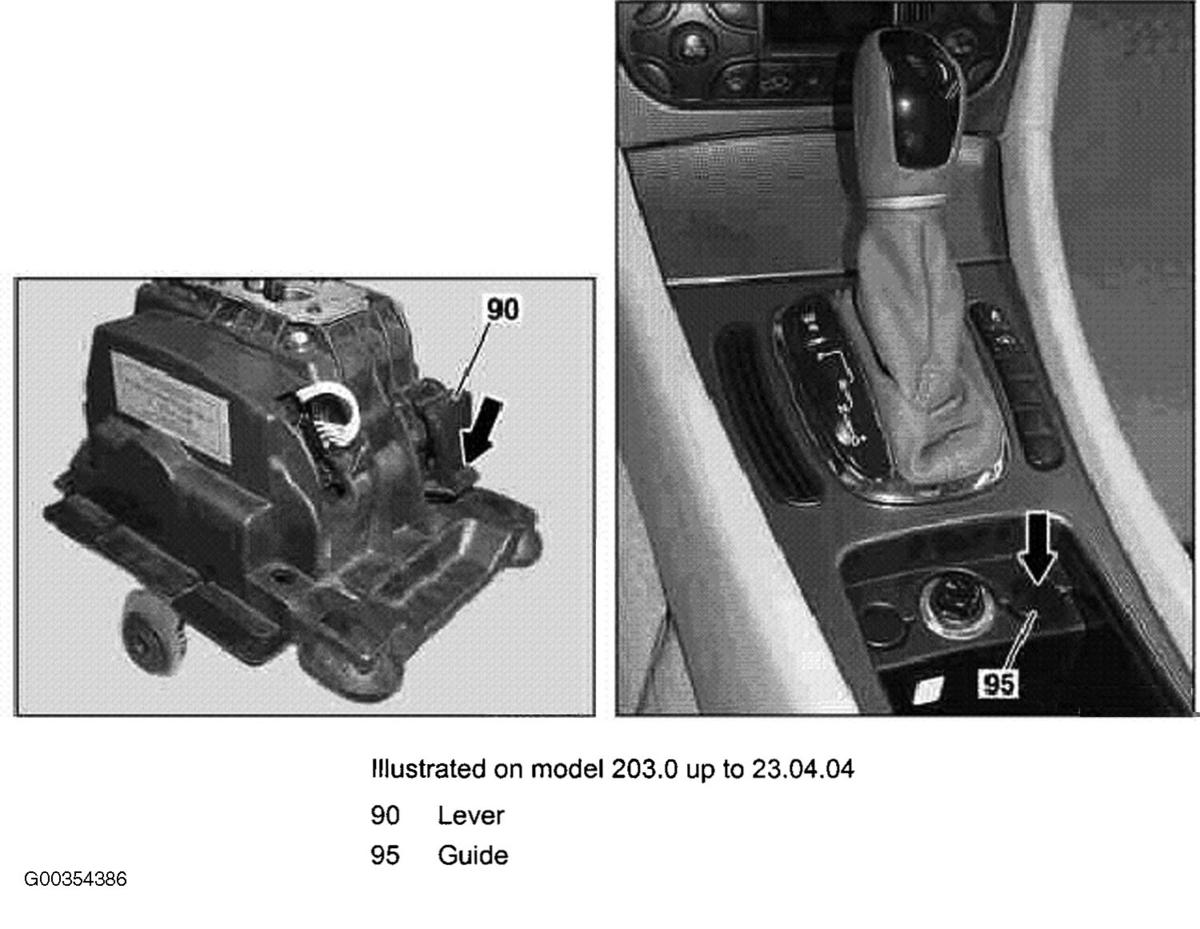

Fig 1: Shift Lock Override, Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

If it is not possible to engage a drive position from selector lever position "P" due to a mechanical or electrical/electronic fault, the selector lever position "P" lock can be released using the shift lock override function.

To do this, the coin holder in the center condole must be unclipped and a suitable tool must be used to pressed on the lever (90) through the guide (95) beneath it (arrow). The selector lever position "P" lock is released via a bolt in the lock solenoid valve. The selector lever can be moved from position "P" by simultaneously operating the lock lever.

R/P Lock, Location/Task/Design/Function

See R/P LOCK, LOCATION/TASK/DESIGN/FUNCTION .

Parking Lock, Location/Task/Design/Function

See PARK PAWL, LOCATION/TASK/DESIGN/FUNCTION .
