Ignition Lock Interlock

WARNING: This page is about a different car, the 2004 Mercedes-Benz C230 and 2003 Mercedes-Benz C230. However, it is still accessible from the selected car via links, so may be relevant.

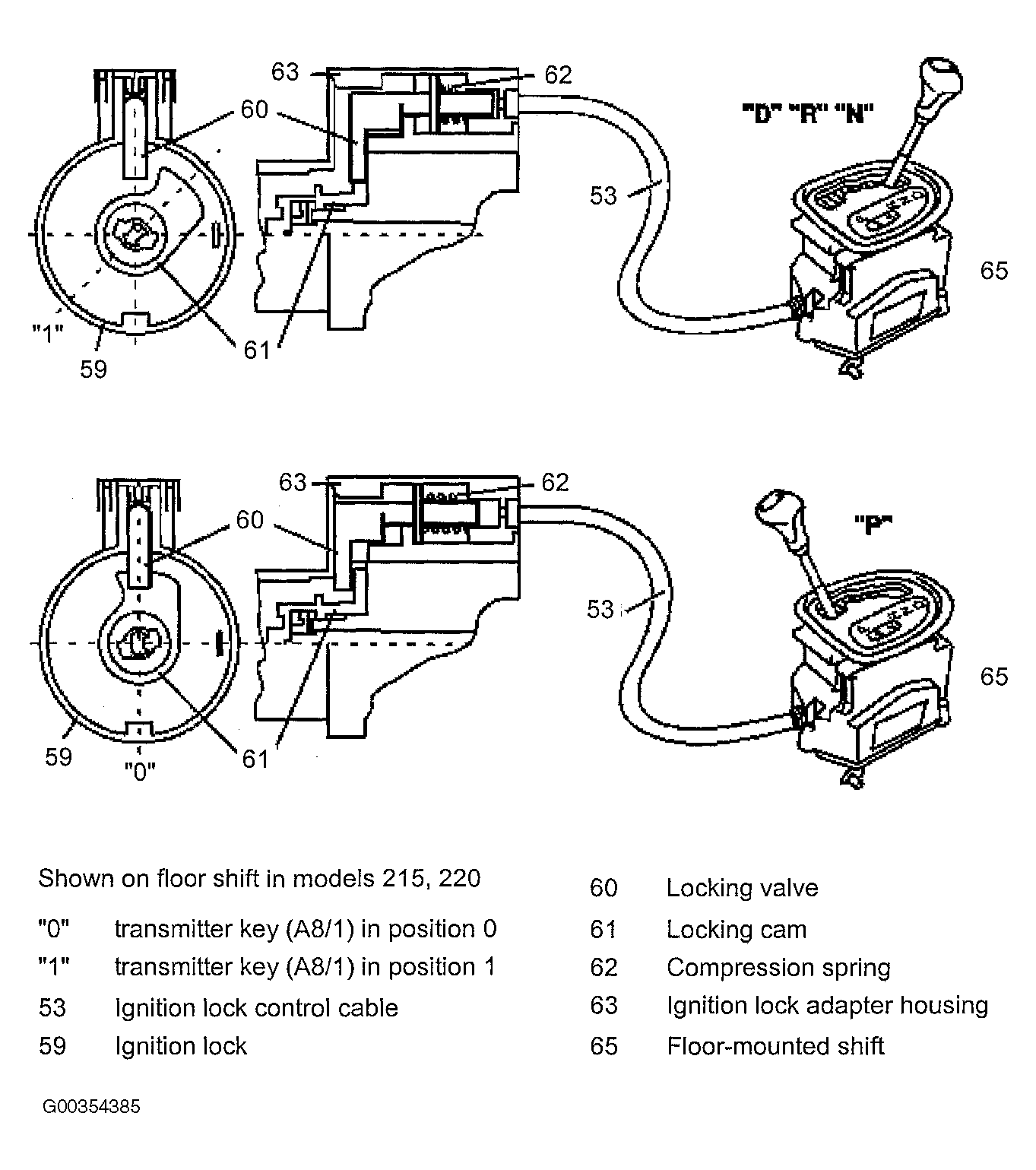

Fig 1: Ignition Lock Interlock

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Operation

The mechanism of the ignition lock interlock connects the selector lever of the floor shift with the ETC control module (N73). It prevents the transmitter key (A8/1) from being withdrawn when the selector lever is not at position "P".

When the parking lock is not engaged (selector lever position "D", "R", "N"), the locking valve (60) locks the locking cam (61). The compression spring (62) only pulls the locking valve (60) away from the locking cam (61) in selector lever position "P". The transmitter key (A8/1) can now be turned to position "0" and removed from the ignition.

Parking Lock, Location/Task/Design/Function

See PARK PAWL, LOCATION/TASK/DESIGN/FUNCTION .
