Selection range sensor, component description - GF27.19-P-5146CWQ
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.9 in MODEL 204.0 up to Model Year 8
Location

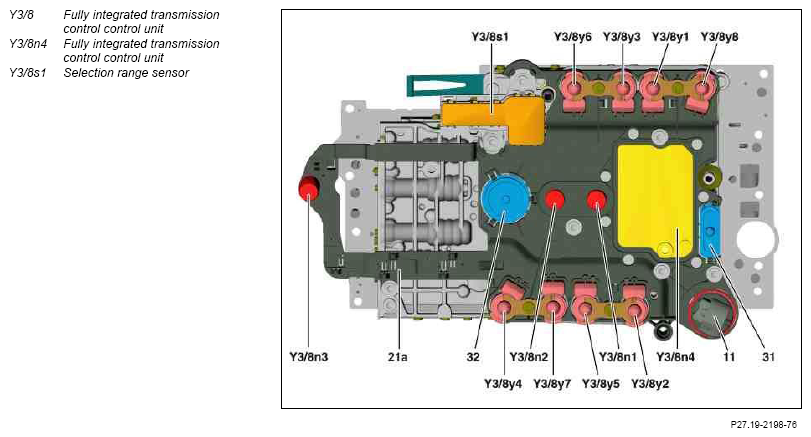

The selection range sensor is integrated in the fully integrated transmission control controller unit.
Task
The task of the selection range sensor is to detect the selection ranges "P", "R", "N", and "D" and the intermediate positions.
