Float component description - GF27.10-P-5109GZ
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.9 in MODEL 164.1 /8, 204.0, 216, 221, 251.0 /1 up to Model Year 8
Location

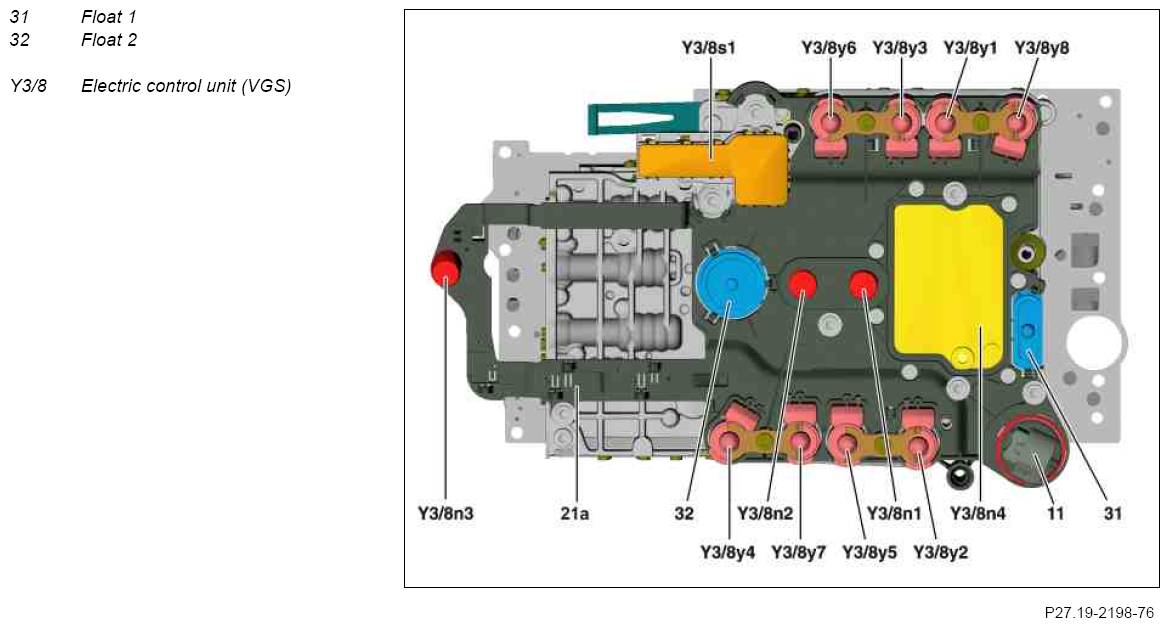

Float 1 and float 2 are mounted on the electric control unit (VGS).
Function
As the oil level rises, float 1 and float 2 seal the transfer ducts between the oil gallery and the gear set chamber.
