Timing chain drive as-built condition - GF05.10-P-0800AG

ENGINE 111

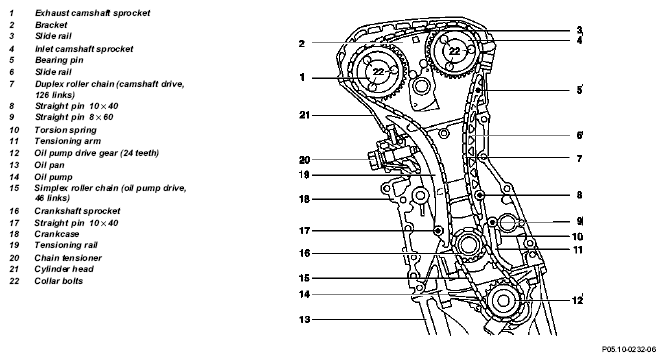

Fig 1: Identifying Timing Chain Drive Components
