Front power window motor, location/function - GF72.29-P-4108R: Notes

MODEL 230

Shown on right door

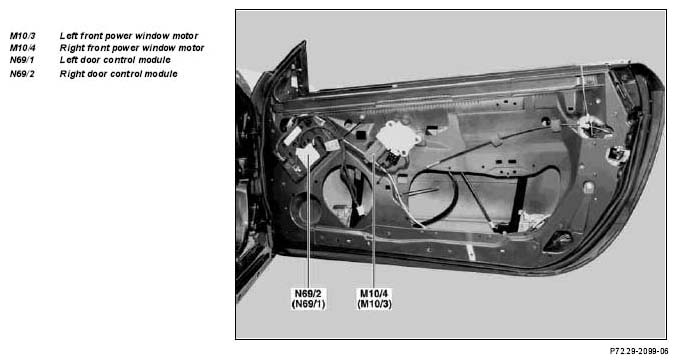

Fig 1: Identifying Front Power Window Motor Location - Shown On Right Door

Courtesy of MERCEDES-BENZ USA

	Front power window motor, location	The left front power window motor (M10/3) is located in the upper middle area of the left door interior.
	Front power window motor function		GF72.29-P-4108-02R
