Remove/install trunk lid - AR88.50-P-5000R: Notes
MODEL 230.4 except CODE (P99) "AMG Black Series" special model
| Remove | |||
|---|---|---|---|
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |

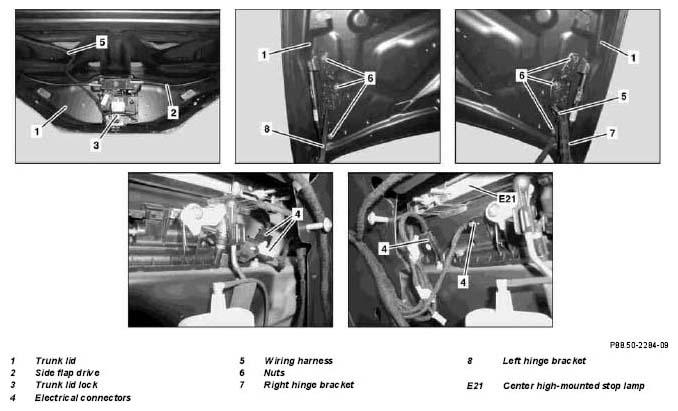

| 1 | Remove side flap drive (2) for Vario roof | AR77.30-P-6374R | |
| 2 | Remove hydraulic distributor and the associated hydraulic lines from trunk lid | On vehicles with code (881) Remote trunk closing (RTC) Refer to: ↓ |
|
| Remove/install hydraulic distributor on trunk lid for remote trunk closing | AR88.50-P-5072R | ||
| 3 | Remove trunk lid lock (3) | AR88.50-P-5020R | |
| 4 | Separate electrical connectors (4) | ||
| 5 | Disconnect electrical connector from center high-mounted stop lamp (E21) | ||
| 6 | Expose wiring harness (5) on trunk lid (1) | ||
| 7 | Mark installation position of left hinge bracket (8) and right hinge bracket (7) on trunk lid (1), unscrew nuts (6) and remove trunk lid (1) with aid of helper. | ||
| Install | |||
| 8 | Install trunk lid (1) on left hinge bracket (8) and right hinge bracket (7) with aid of helper and tighten until trunk lid (1) is fastened. | ||
| 9 | Connect electrical connector to center high-mounted stop lamp (E21) | ||
| 10 | Install and adjust trunk lid lock (3) | AR88.50-P-5020R | |
| 11 | Adjust trunk lid (1) | Vehicles up to vehicle ident. end no. 063909 | AR88.50-P-5200R |
| Vehicles as of vehicle ident. end no. 063910 | AR88.50-P-5200RA | ||
| 12 | Fasten wiring harness (5) to trunk lid (1) | ||
| 13 | Install hydraulic distributor and associated hydraulic lines (1) on trunk lid (1). | On vehicles with code (881) Remote trunk closing (RTC) | |
Refer to: ↓ |
|||
| Remove/install hydraulic distributor on trunk lid for remote trunk closing | AR88.50-P-5072R | ||
| 14 | Install side flap drive (2) for Vario roof | AR77.30-P-6374R |
