Store outside mirror position, function - GF88.79-P-2004R

MODEL 230

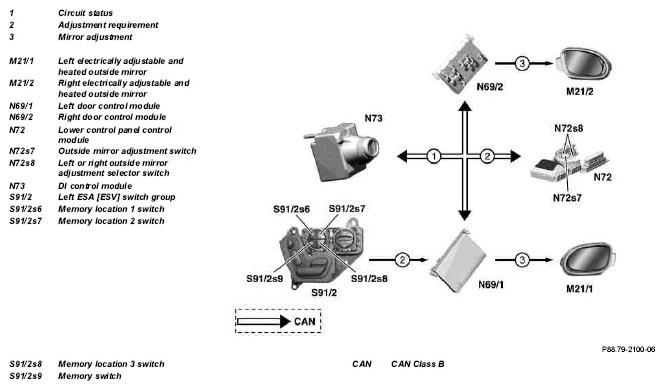

Fig 1: Identifying Store Outside Mirror Position, Function - Model 230

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function prerequisites

No overvoltage or undervoltage
Circuit 15R or circuit 15 ON
Position measurement supplies valid value

Function

Three different positions can be stored per transmitter key

In addition to locking the vehicle from the outside the last positions moved to are stored. The following positions are stored on each storage location of the left seat adjustment switch group (S91/2):

the driver's seat and backrest position
the steering wheel position
the inside rearview mirror position
the outside mirror position on the driver's side
the outside mirror position on the passenger side

To store the position the left seat adjustment switch group (S91/2) has the following switches:

Switch for memory location 1 (S91/2s6),
Switch for memory location 2 (S91/2s7),
Switch for memory location 3 (S91/2s8) and
memory switch (S91/2s9).

Operating procedure

Before storage for the corresponding transmitter key the left electrically adjustable and headed outside mirror (M21/1) and right electrically adjustable and heated outside mirror (M21/2) must be adjusted to the desired position

Storage is to be performed as follows:

Press memory switch (S91/2s9) for at least 40ms and release
Press switch for memory location 1 (S91/2s6) or switch for memory location 2 (S91/2s7) or switch for memory location 3 (S91/2s8) within 3s for min.40 ms

If the position measurement results in valid values the positions of the left electrically adjustable and heated outside mirror (M21/1) and the right electrically adjustable and heated outside mirror (M21/2) are stored in the left door control module (N69/1) and right door control module (N69/2)

	Position measurement for outside mirror, function		GF88.79-P-4000R
	Lower control panel control module, location/ purpose/design		GF54.21-P-4116R
	Left front door control module, location/purpose/ design		GF72.29-P-4113R
	Right front door control module, location/ purpose/design		GF72.29-P-4114R
	Electronic ignition switch control module location/purpose/design		GF80.57-P-4116R
	Front seat adjustment switch group, location/ design/function		GF91.29-P-2100R
