Location of the ignition module - GF15.15-P-3101-01M

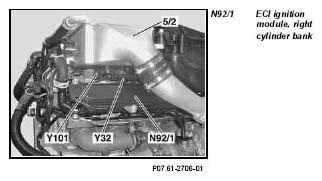

Fig 1: Identifying ECI Ignition Module, Right Cylinders Bank
G04840203Courtesy of MERCEDES-BENZ USA

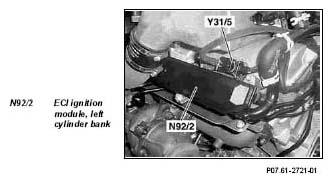

Fig 2: Identifying ECI Ignition Module, Left Cylinders Bank
G04840204Courtesy of MERCEDES-BENZ USA
