Assignment To Coupling For Electronic Transmission Control (ETC) Control Module (Without Touch Shift)

Transmission 722.6 in 163 without touch shift.

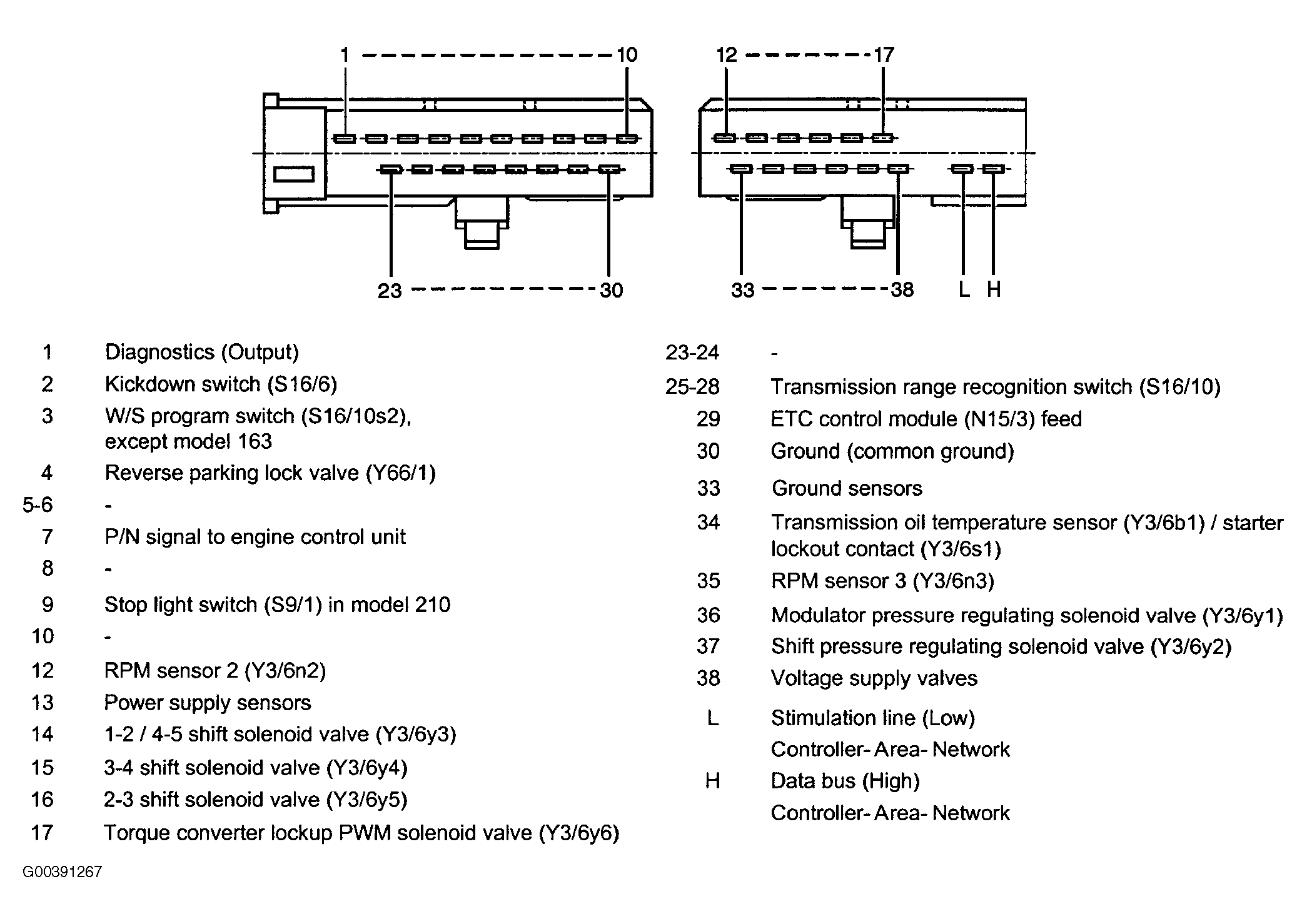

Fig 1: Assignment To Coupling For Electronic Transmission Control (N15/3)
G00391267Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
