Assignment To Coupling For Electronic Transmission Control (ETC) Control Module (With Touch Shift)

Transmission 722.6 In Model 163 With Touch Shift

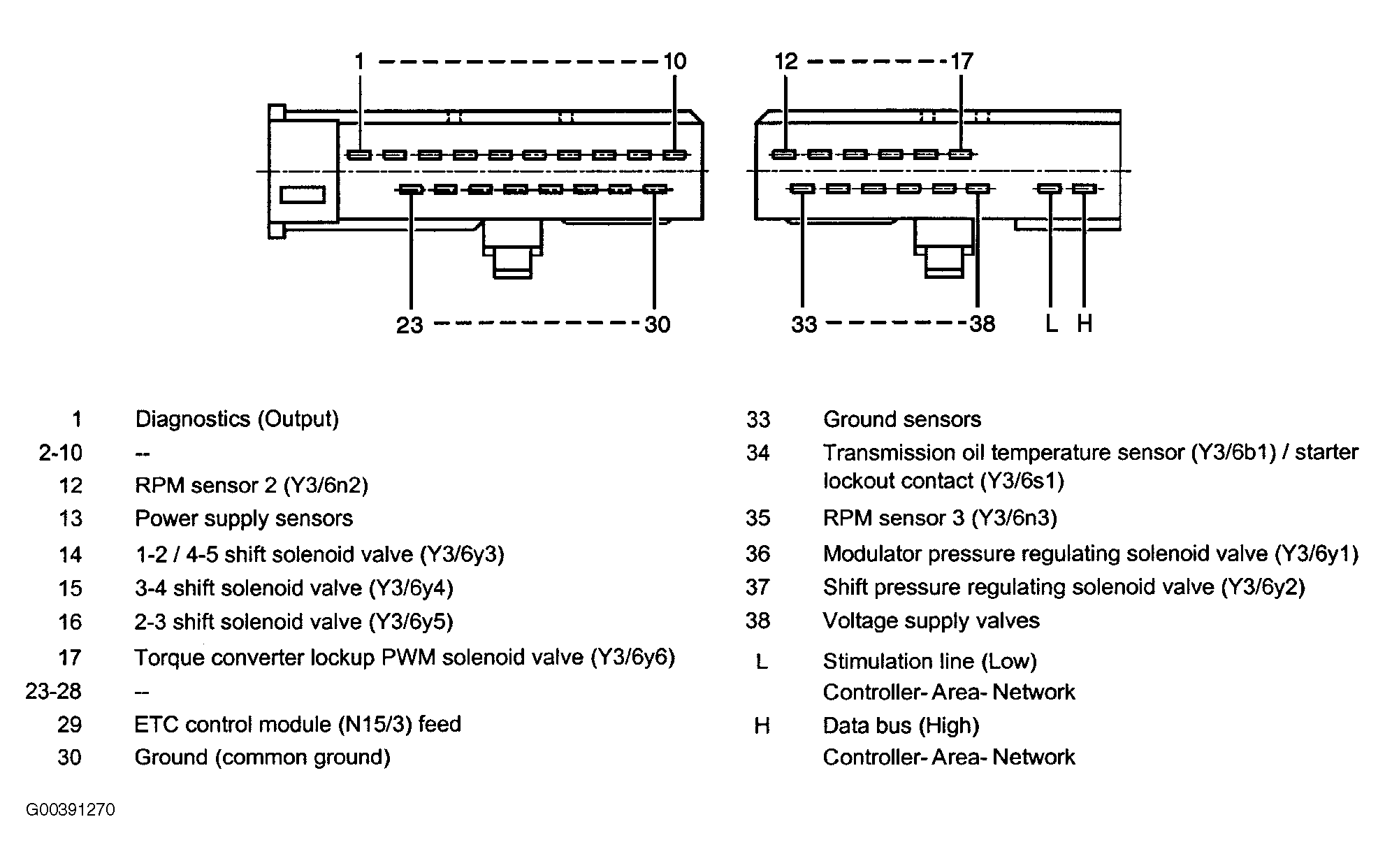

Fig 1: Assignment To Coupling For Automatic Clutch Control Module ETC (N15/3)
G00391270Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
