CAN Module In RCL Control Module, Testing Electrical System Of Electronic Transmission Control (ETC)

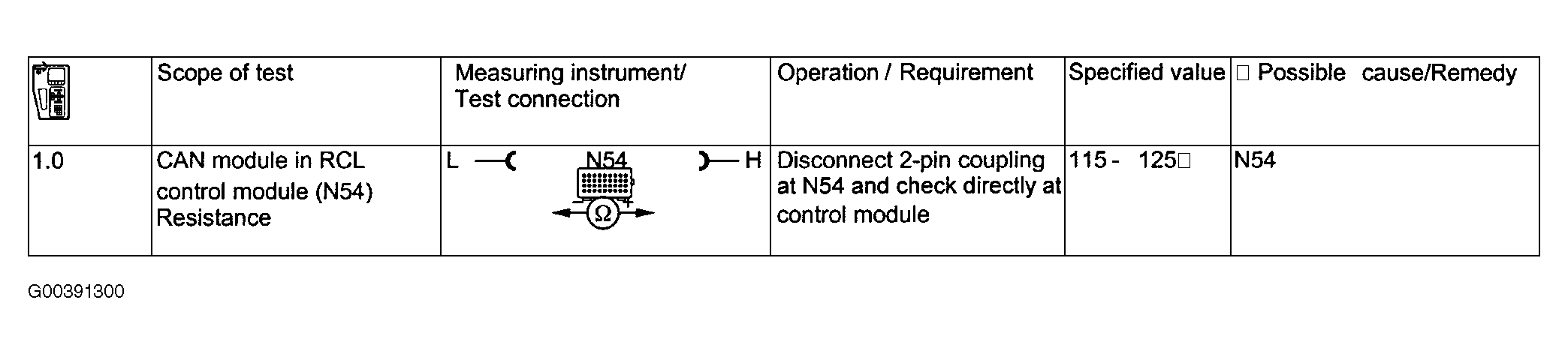

Fig 1: CAN Module In RCL Control Module, Testing Electrical System Of Electronic Transmission Control (ETC)
G00391300Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
