Check & Adjustment

  1. Check toe-in at front axle. See CHECK & ADJUST TOE ANGLE AT FRONT AXLE  .
  2. Turn steering wheel to left lock, noting angle on left wheel scale.
  3. If the adjusting value is not within specification, release lock nut (2) and turn in or out stop screw (1) until permissible steering angle is attained. Tighten lock nut. See Fig 1 .
  4. Turn steering wheel to right lock, noting angle on right wheel scale. Repeat adjustment step.
  5. Lightly grease tops of the screws.

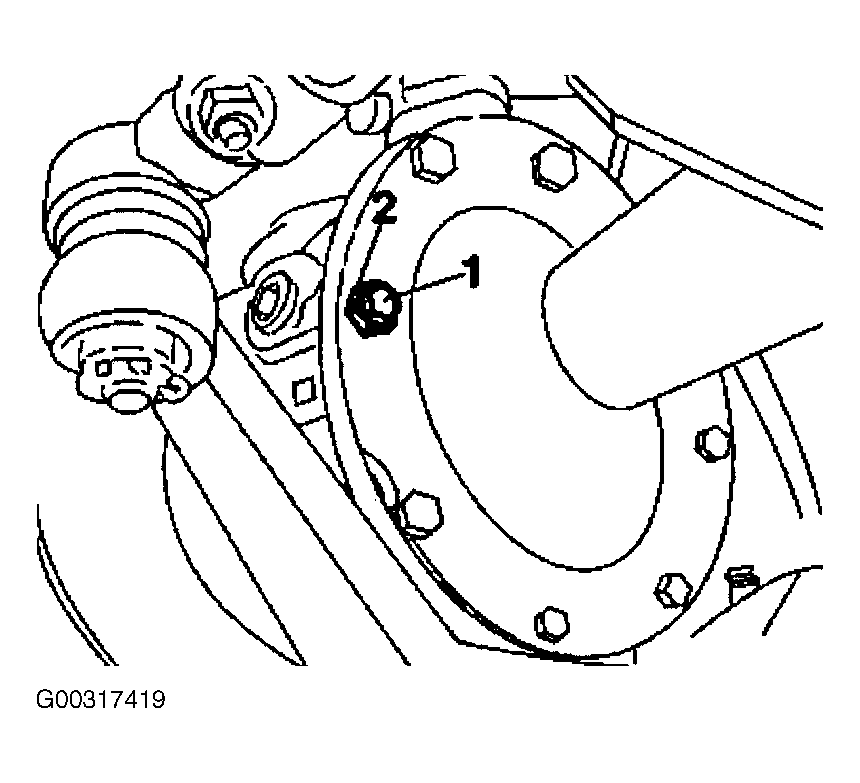

Fig 1: Checking & Adjusting Steering Angle
G00317419Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
