O2 sensors, location - GF07.04-P-4103-02AM

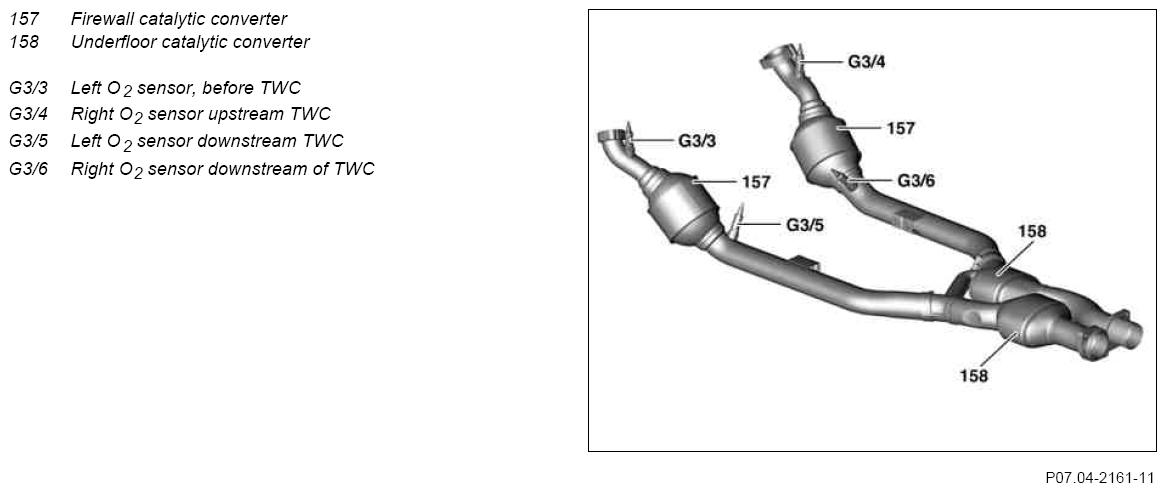

Fig 1: Identifying Firewall And Underfloor Catalytic Converter And O2 Sensors

G07870859

Courtesy of MERCEDES-BENZ USA
