Left front seat adjustment control unit, with memory location/task - GF91.29-P-2106T: Notes

MODELS 211.0 /2 /6 with CODE (275a) Memory package (driver's seat, steering column, mirrors)

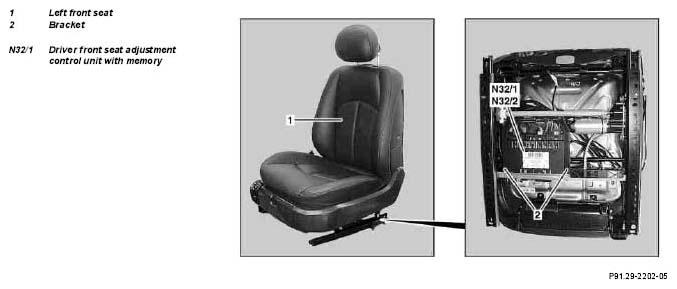

Fig 1: Identifying Driver Front Seat Adjustment Control Unit
G04986982
  Left front seat adjustment control unit, with memory, location The driver-side front seat adjustment control unit with memory (N32/1) is located in the seat frame of the left front seat (1).
  Left front seat adjustment control unit, with memory, purpose   GF91.29-P-2106-02T
