Remove/Install Selector Lever

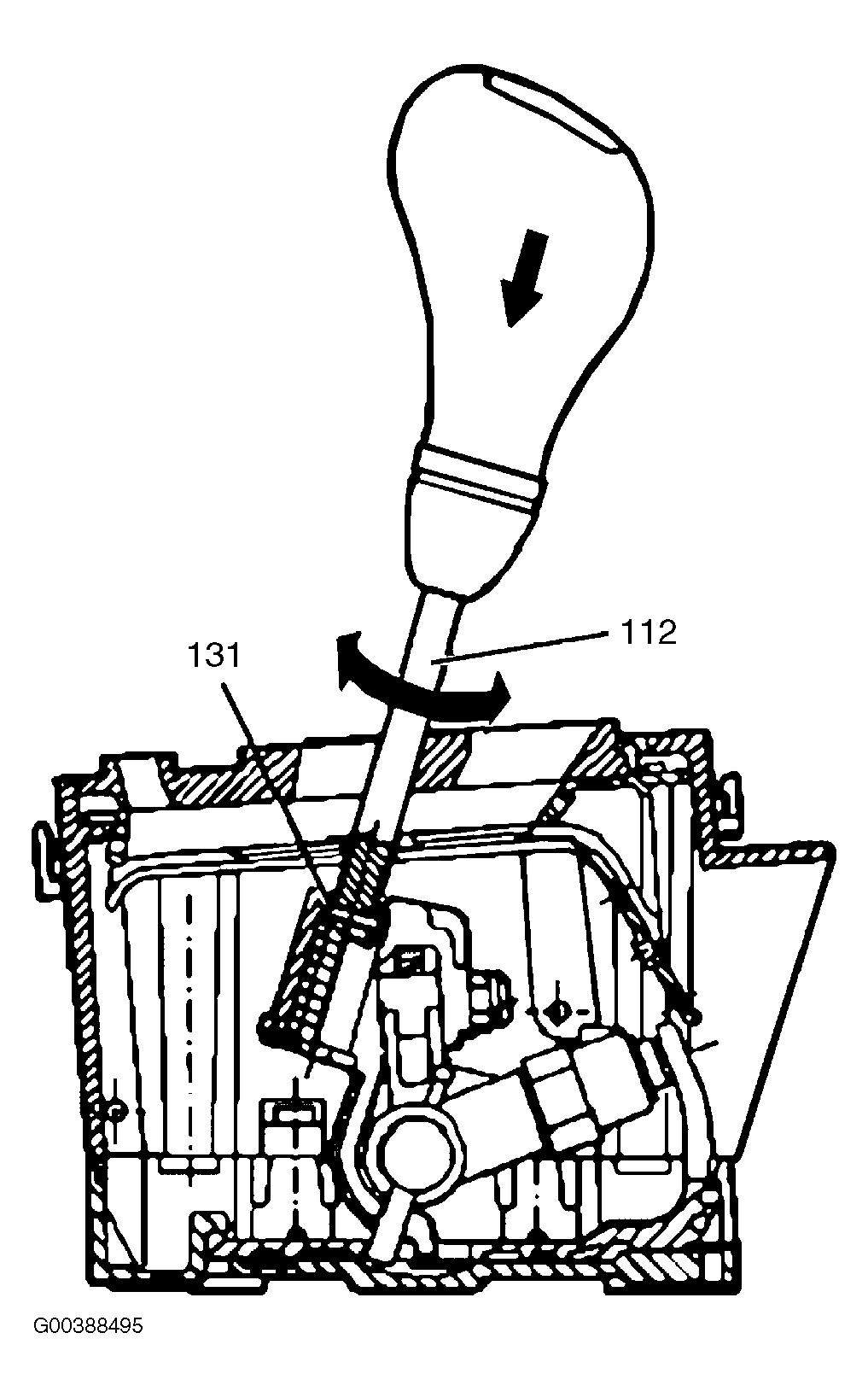

Fig 1: Remove/Install Selector Lever

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Removal

1. 1 -  Move selector lever to position "D". Selector lever soldered.
2. 2 -  Push selector lever (112) downwards and turn 90° counterclockwise. See Fig 1.
3. 3 -  Pull up selector lever.

Installation

1. 4 -  Install selector lever (112) in clevis of floor shift with locking pin (131) positioned transverse to vehicle direction of travel.
2. 5 -  Turn selector lever clockwise 90° until it engages.
