Rear Side Airbag, location/task/design/function - GF91.60-P-4015Q: Notes
MODEL 209.3 with CODE (293) Left and right rear side airbag

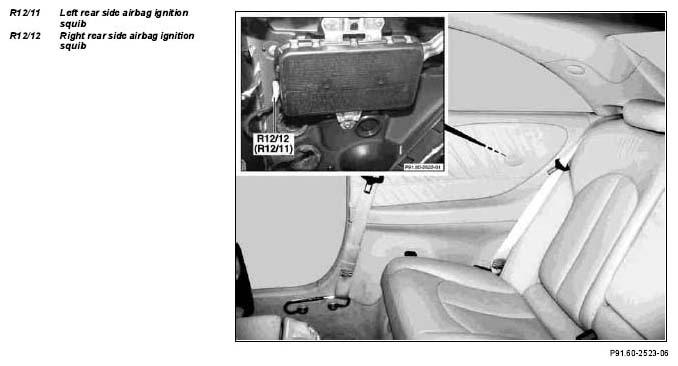

| Rear side airbag, location | The left rear side airbag and right rear side airbag are attached above the armrest in the inner paneling in the rear. | ||
| Rear side airbag - Task | In the event of a side impact the left rear side airbag and right rear side airbag protect the upper part of the body and head of the rear occupants concerned against injuries. The rear side airbag is triggered simultaneously with the front side airbag and the window airbag. | ||
| Rear side airbag - Design | The left rear side airbag and right rear side airbag in each case consists of a gas generator with squib and an airbag. The airbag consists of polyamide fabric. | ||
| Rear side airbag - Function | GF91.60-P-4015-02Q |
