Front heated seat switch, location/task - GF91.30-P-3000Q
MODELS 209.3 /4 as of 1.6.04 with CODE (873) Electrically heated left and right front seats

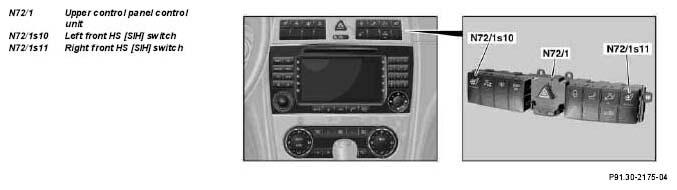

| Front heated seat switch, location | The left front HS [SIH] switch (N72/1s10) and right front HS [SIH] switch (N72/1s11) are located in the upper control panel control unit (N72/1). | ||
| Front heated seat switch, task | Manually switching on, over and off of the heated seats HS [SIH] and display of the heating stage with LEDs in the left front HS [SIH] switch (N72/1s10) or in the right front HS [SIH] switch (N72/1s11). |
