Speaker system, component description - GF82.62-P-4220CWS
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 with CODE (810) Sound system up to Model Year 2008
Illustrated on model 204.0

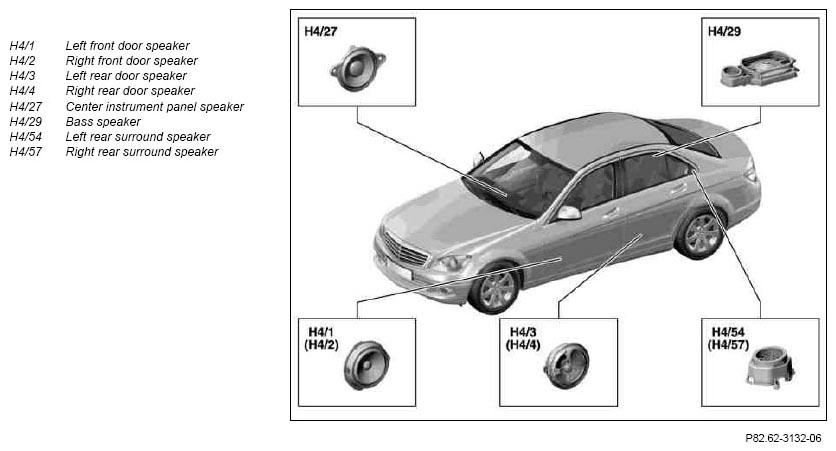

Location
- The left front door speaker and the right front door speaker are installed in the front left or right door, behind the respective door trim.
- The center instrument panel speaker is installed in the center at the top of the dashboard.
- The left rear door speaker and the right rear door speaker are installed in the rear left or right door, behind the respective door trim.
- The bass speaker on model 204.0 is installed in the rear area under the rear shelf. Integrated into the bass speaker is also the right rear surround speaker.
- The left rear surround speaker on model 204.0 is installed in the rear area under the rear shelf to the left of the bass speaker.
Task
During voice output, for handsfree mode or when outputting audio applications, the task of the speaker system is to convert the electrical signals into acoustic (audible) signals. In addition, the voice output during navigation is provided over the left front door speaker, right front door speaker and the center instrument panel speaker.
