Mobile phone interface, component description - GF82.70-P-5004CWJ

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 /2

with CODE (498) Japan version

up to Model Year 2008

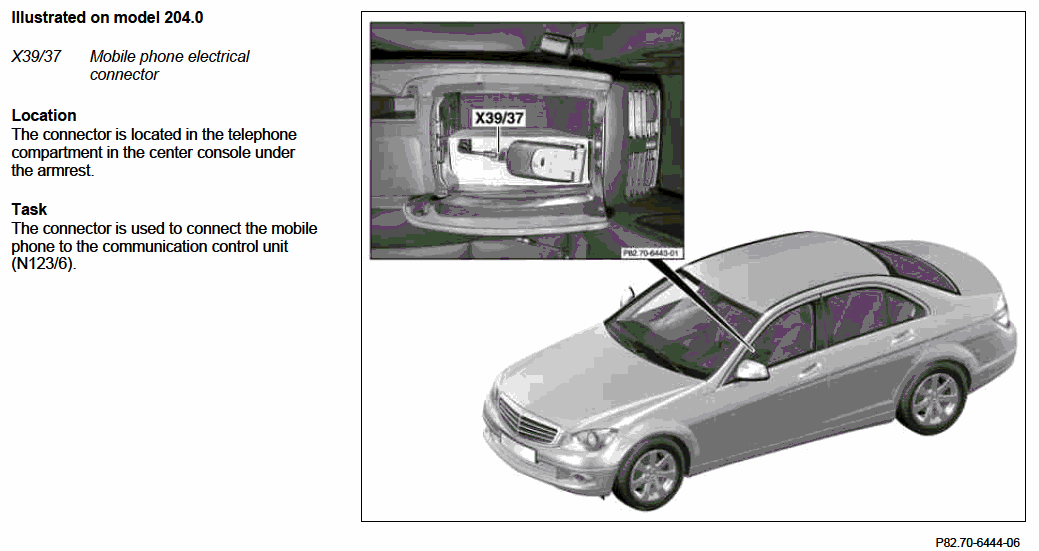

Fig 1: Locating Mobile Phone Electrical Connector
G00544539Courtesy of MERCEDES-BENZ USA
