Digital Audio Broadcasting control unit, component description - GF82.62-P-5000CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 with CODE (537) Digital radio up to Model Year 2008
Illustrated on model 204.0

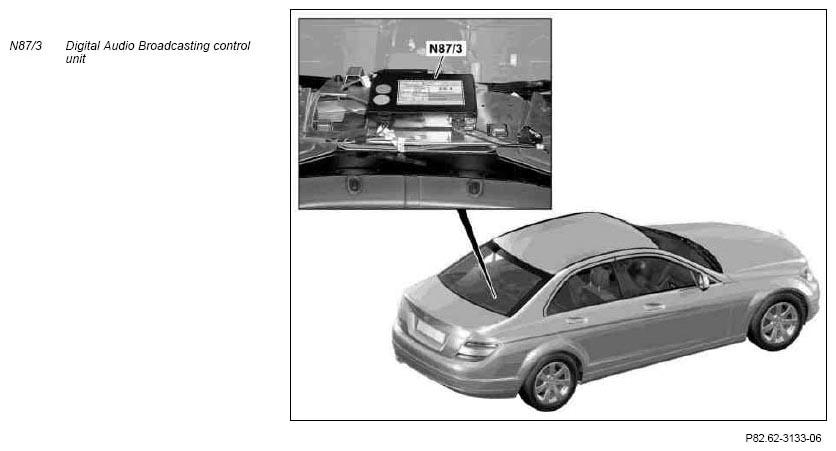

Location
The Digital Audio Broadcasting control unit is located in the trunk under the trunk mat on the crossmember (model 204.0).
Task
The Digital Audio Broadcasting (Digital Radio) (DAB) signals received by the multifunction antenna (A28/11) or TV and DAB Band III antenna (A94/1) are forwarded to the Digital Audio Broadcasting control unit, processed and transmitted digitally over Media Oriented System Transport (MOST) to the sound system amplifier control unit (N40/3).
The Digital Audio Broadcasting control unit thus receives in 2 different frequency ranges:
- L-band signals, which are received over the multifunction antenna, usually originate from conurbation stations
- Band III signals are received via the TV and DAB Band III antenna and usually originate from national stations
