Component description for media interface control unit - GF82.60-P-5000CE
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 with CODE (518) Media interface as of model year 2009/YoM 08
Shown on model 204.0 up to 28.2.2011

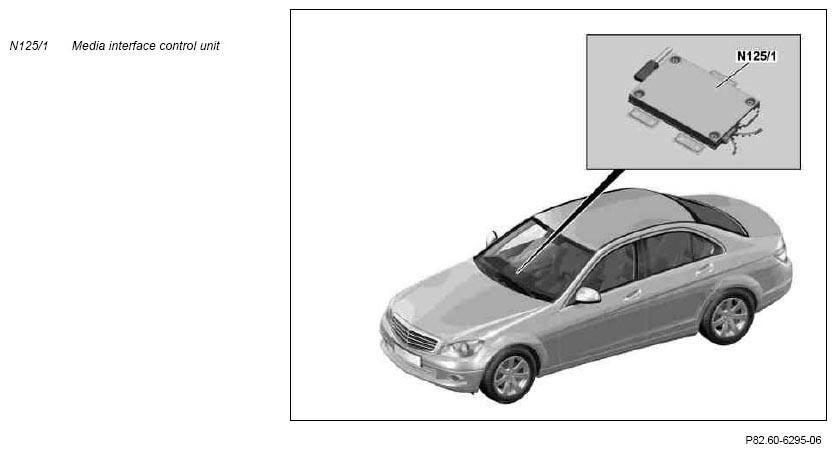

Location
The Media interface control unit is located behind the glove compartment.
Task
- Receive signals
- Transmit signals
Receive signals
- Direct lines
- Media Oriented System Transport (MOST)
Transmit signals
- Direct lines
- MOST
Direct lines
- Power supply to the media interface electrical connector in general and via the Mitsumi CAM62 connector for USB
Direct lines
- Power supply to circuit 31 and circuit 30g via connectors G+H
- Audio signals and data via the media interface electrical connector (X18/70) and Mitsumi CAM62 connector
- Electronic wake-up for MOST over G+H connector
MOST
- Control signals from the audio equipment via the Media Oriented System Transport (MOST) 2+0 connector
MOST
- Audio signals and data from the audio equipment over Media Oriented System Transport (MOST) 2+0 connector
| Technical Data Designation | Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| Media interface control unit | ||||
| Power supply | VV | 12 | Operating voltage (UB ) | |
| Voltage limits | VV | >9 | Minimum (UBmin ) | |
| VV | < 16 | Maximum (UBmax ) | ||
| Power consumption | mA | 300 | Ready (IB ) | |
| mA | 300 | Action, typical (IAction ) | ||
| A | 1.5 | Maximum (IAction ) | ||
| mA | 0.1 | Quiescent current | ||
| Reverse polarity protection | Yes, in range -9 V to -16 V | |||
| Flash capability/coding capability | No/DC-compatible |
| Wiring diagram for media interface control unit | PE82.60-P-2105-97FAA |
