Communication control unit, component description - GF82.70-P-5003CWJ
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 /2 with CODE (498) Japan version up to Model Year 2008
Illustrated on model 204.0

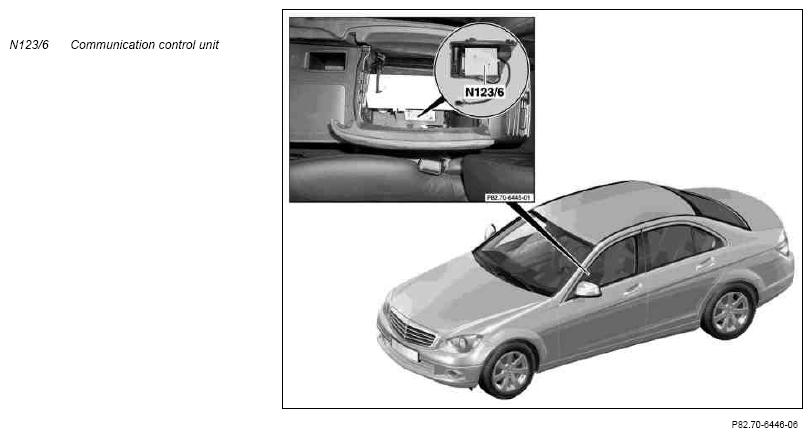

Location
The communication control unit is located under the armrest's telephone compartment in the center console.
Task
The communication control unit sets up a connection for the COMAND controller unit (A40/3) to the mobile phone connected to the mobile phone electrical connector (X39/37) and vice versa, in other words all mobile phone signals or data from and to the mobile phone are sent via the communication control unit.
