Sound amplifier, location/task/design/function - GF82.62-P-3100PMV

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODELS 203.076/276 with CODE (494a) USA version

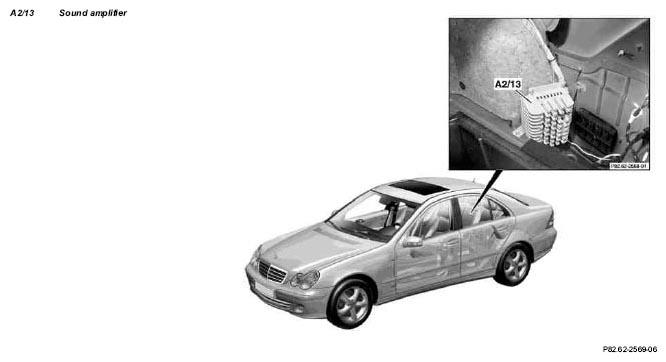

Fig 1: Identifying Sound Amplifier Location - Models 203.076/276 With Code (494A) USA Version

Sound amplifier, location	The sound amplifier (A2/13) is mounted on the right rear inside wall.
Sound amplifier, purpose	Processing (tone settings) and amplification of all audio signals (radio, CD, voice output for navigation, etc.)
Sound amplifier, design	MOST interface Connection for sound amplifier microphone (B25/6) Digital filter technology 8 speaker outputs for the left/right doors, center, woofer
Sound amplifier, function		GF82.62-P-3100-04PMV
