Sound amplifier, location/task/design/function - GF82.62-P-3100PMU

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODELS 203.0 /2 /7 (except 203.076 /276) as of 24.4.04 with CODE (494a) USA version with CODE (810) Sound system

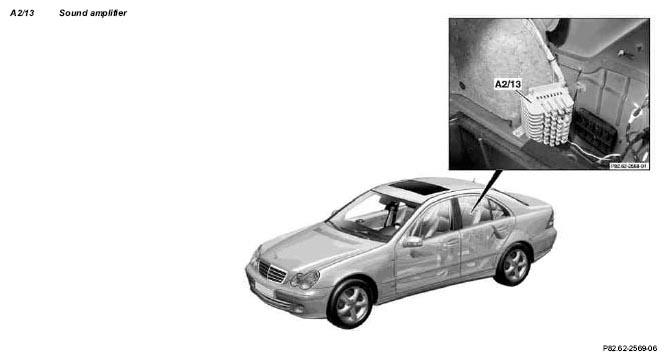

Fig 1: Identifying Sound Amplifier Location - Models 203.0 /2 /7 (Except 203.076 /276) As Of 24.4.04 With Code (494A) USA Version With Code (810)

Sound amplifier, location	The sound amplifier (A2/13) is mounted to the right rear interior panel.
Sound amplifier, purpose	Editing (sound settings) and amplification of all audio signals (radio, CD, voice output on navigation, etc.).
Sound amplifier, design	MOST interface Connection for sound amplifier microphone (B25/6) Digital filter technology 8 speaker outputs for left/right doors, center, woofer
Sound amplifier, function		GF82.62-P-3100-04PMU
