Stop lamp control, function - GF82.10-P-3010B
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203
Shown on model 203 up to 1.8.01

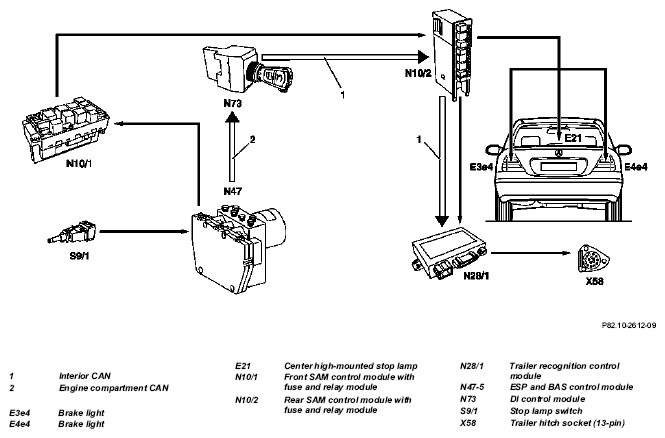

Stop lamp actuation, function
Operating procedure
Basic requirements:
- The transmitter key (A8/1) is set to position "circuit 15 ON" and the service brake is actuated.
- Voltage is applied over the switching contact of the stop lamp switch (S9/1) to circuit 54 on the ESP and BAS control module (N47-5) and the electronic ignition switch control module (N73) is switched.
The stop lamp switch (S9/1) not applicable as of 1.8.01. The stop lamp signal is generated directly in the ESP and BAS control module (N47-5).
- The electronic ignition switch control module (N73) converts the voltage signal and reports to the front SAM control module with fuse and relay module (N10/2) over the CAN interior "stop lamp ON".
- The voltage signal is sent from the front SAM control module with fuse and relay module (N10/1) over another direct line to the rear SAM control module with fuse and relay module (N10/2). Up to 1.8.01 the ESP and BAS control module (N47-5) will also send the voltage signal parallel for the stop lamp switch (S9/1) over a direct line to the front SAM control module with fuse and relay module (N10/1).
- The rear SAM control module with fuse and relay module (N10/2) actuates the stop lamp (E3/4 and E4/4) and the center high-mounted stop lamp (E21).
| Rear SAM control module with fuse and relay module, location/task/design/function | GF54.21-P-4115PP | ||
| Trailer recognition control module, location/task | With code 550 (trailer hitch) | GF82.10-P-2106S |
