Rear window wiper switch, location/task/design/function - GF82.30-P-4102PS
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 203.2 up to 23.4.04

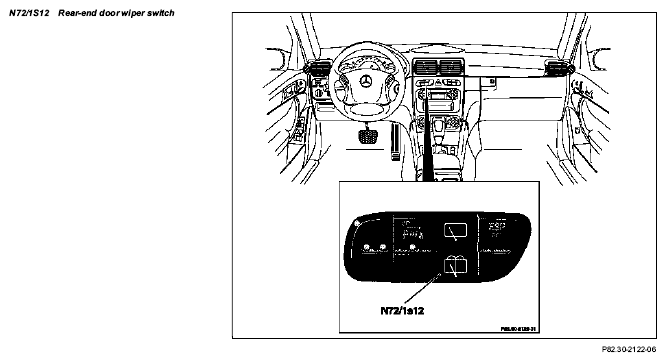

| Location of rear wiper switch | The rear-end door wiper switch (N72/1s12) is on the button panel of the upper control panel control module, which is located above the audio unit in the center area of the instrument panel. | ||
| Rear window wiper switch, purpose | Controlling rear window intermittent wiping and rear window washer functions | ||
| Rear window wiper switch, design | The rear window wiper switch (N72/1s12) consists of a button with two operating contacts | ||
| Function of rear wiper switch | Actuation of the rear-end door wiper switch (N72/1s12) is read in voltage-coded by the upper control panel control module. |
