Reading lamp actuation, function - GF82.20-P-2028A

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 203

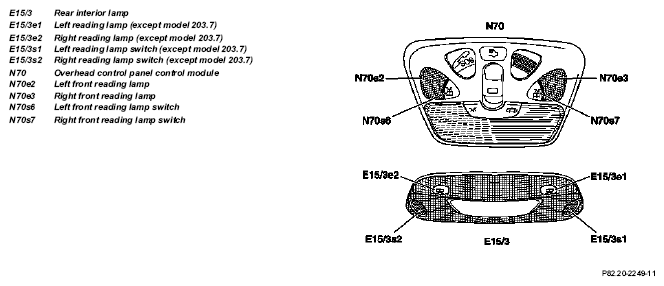

Fig 1: Identifying Reading Lamp Components

Function sequence when actuating front or rear reading lamps

Basic prerequisite:
- Reading lamp switch is in position "Reading lamp OFF".
The overhead control panel control module (N70) and the rear interior lamp (E15/3) monitor the position of the reading lamp switches.
The overhead control panel control module or the rear interior lamp recognizes that the reading lamp switch is switched to position "Reading lamp ON" and immediately actuates the reading lamp associated to the switch.

	Overhead control panel control module, location/purpose/design		GF82.20-P-4110A
	Rear interior lamp, location/design		GF82.20-P-4111A
