Position lamp control, function - GF82.10-P-3001B
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203

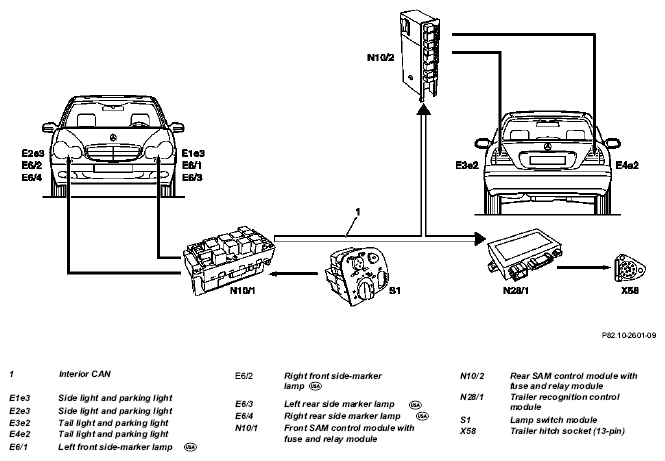

Parking lamp actuation, function
Operating procedure
The exterior lamp switch (S1s1) of the light switch module (S1) is set to the
"Left parking lamp ON" or
"Right parking lamp ON" position.
- The front SAM control module with fuse and relay module (N10/1) registers the applied position of the exterior lamp switch (S1s1).
- The front SAM control module with fuse and relay module (N10/1) actuates the parking lamp in the left and right front headlamp unit (E1 and E2) and simultaneously sends over the CAN interior the "Left or right parking lamp ON" signal to the rear SAM control module with fuse and relay module (N10/2).
- The rear SAM control module with fuse and relay module (N10/2) actuates the taillamp and parking lamp (E3e2 and E4e2).
| Front SAM control module with fuse and relay module, location/task/design | GF54.21-P-4108PP | ||
| Rear SAM control module with fuse and relay module, location/task/design/function | GF54.21-P-4115PP | ||
| Lamp switch module, location/task/design | GF54.25-P-4103A | ||
| Trailer recognition control module, location/task | With code 550 (trailer hitch) | GF82.10-P-2106S |
