Fiber optic cable, location/task/function - GF82.00-P-4000A
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 129 as of 1.6.98, 163, 168 as of 1.9.98, 170, 202 as of 1.6.98, 203, 208.3, 210 as of 1.6.98, 215, 220

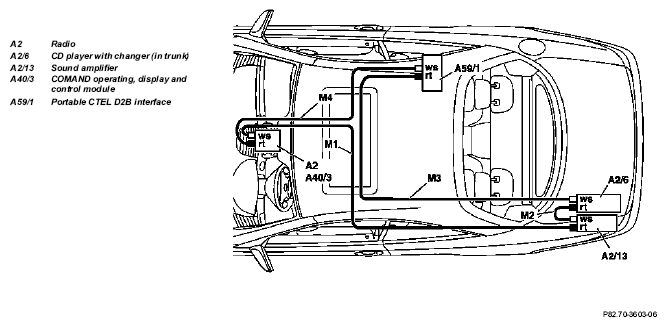

Exemplified on model 215 with code (819) 6-disc CD changer, with code (810) Sound System and with code (382) MB phone "CTEL" in console on right side of dome
| Fiber optic cable, location | Model 129 | GF82.00-P-4000-01D | |
| Model 163 as of 01.09.01 | GF82.00-P-4000-01GH | ||
| Model 168 | GF82.00-P-4000-01E | ||
| Model 170 | GF82.00-P-4000-01C | ||
| Model 202, 208 | GF82.00-P-4000-01B | ||
| Model 203 | GF82.00-P-4000-01G | ||
| Model 210 | GF82.00-P-4000-01A | ||
| Models 215, 220 | GF82.00-P-4000-01F | ||
| Fiber optic cable, purpose | The fiber optical cable is responsible for the optical data transfer of the components located at the digital data bus (D2B). | ||
| Fiber optic cable, function | GF82.00-P-4000-04A |
