Multifunction sensor location/task/function - GF83.10-P-2148Q

MODEL 209.3 /4 with CODE (581b) Convenience automatic air conditioning

Shown on model 209.3

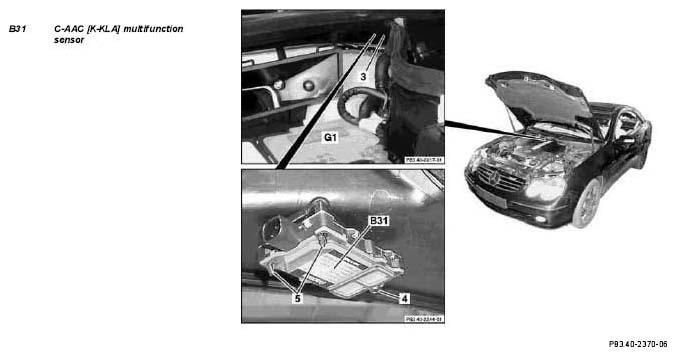

Fig 1: Identifying Multifunction Sensor Location (Shown On Model 209.3)
G04960355
  Multifunction sensor, location The C-AAC [K-KLA] multifunction sensor (B31) is located in the fresh air inlet on the right rear of the engine compartment.
  AAC multifunction sensor, task The C-AAC [K-KLA] multifunction sensor (B31) is used to record the following values:
  • ambient temperature
  • Humidity
  • pollutant concentrations of outside air

  Multifunction sensor, function   GF83.10-P-2135-02P
