CAN L data bus, cable open-circuit, testing electrical system (RFL/RCL) - AD80.35-P-6000-25B
CAN L data bus, cable open-circuit, testing electrical system (RFL/RCL) - AD80.35-P-6000-25B

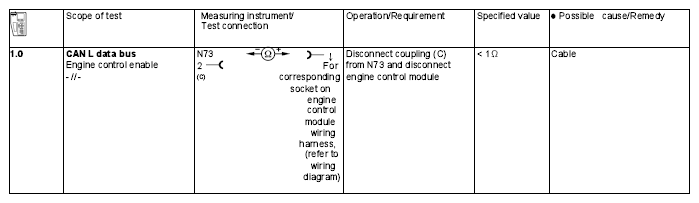

Fig 1: CAN L Data Bus, Cable Open-Circuit, Testing Electrical System (RFL/RCL) Table
