Front HS [SIH] Control Unit Connector End View (N25/5)

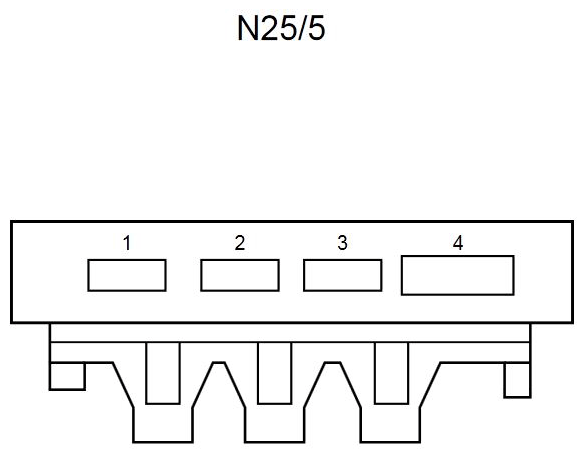

Fig 1: Front HS [SIH] Control Unit Connector End View (N25/5)

G11070668

Courtesy of MERCEDES-BENZ USA
