Inclination sensor arrangement/purpose/design/function - GF80.50-P-4105A: Notes
MODEL 170 up to 31.5.98 with CODE (882d) Towing sensor
MODELS 202 as of 1.6.97 up to 31.5.98, 208, 210 up to 31.5.98 with CODE (882a) Interior motion sensor (infrared)
MODELS 170, 202, 208, 210 as of 1.6.98, 215, 220 with CODE (551a) Anti-theft alarm system (ATA)
MODELS 215, 220 with CODE (491) U.S. version
Version up to 06/00
Version as of 06/00
| ATA anti-towing sensor - location | Model 170 | GF80.50-P-4105-02C | |
| Models 202, 208 | GF80.50-P-4105-02E | ||
| Model 210 | GF80.50-P-4105-02F | ||
| Models 215, 220 | GF80.50-P-4105-02S | ||
| Inclination sensor - task | Monitoring position change of vehicle | ||

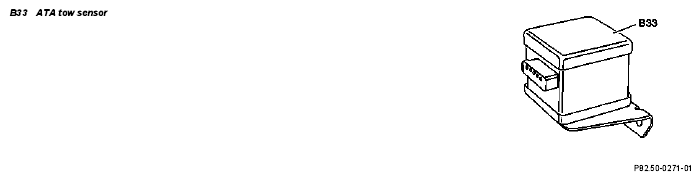

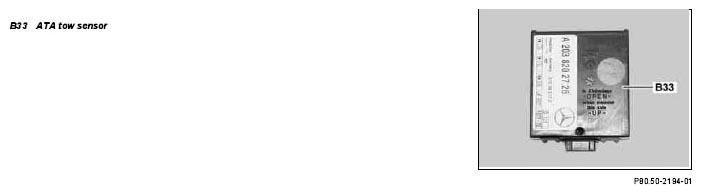

| Inclination sensor - design | The inclination sensor for ATA (B33) is fitted with electrodes in an electrolyte (electrically conductive liquid). | ||
| ATA anti-towing sensor, function | GF80.50-P-4105-01A |
