Refrigerant pressure sensor, component description - GF83.40-P-2202CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 up to Model Year 2008
Illustrated on model 204.0
Location

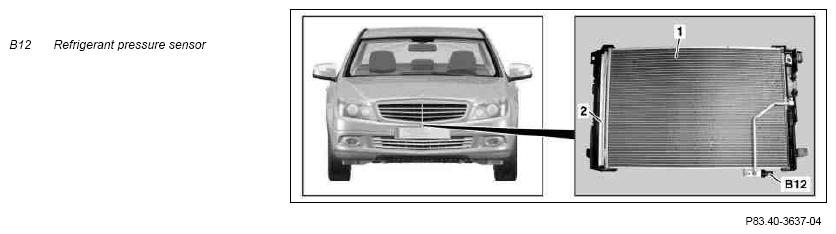

The refrigerant pressure sensor is located at the bottom, next to the condenser (1).
Task
The refrigerant pressure sensor records the refrigerant pressure. The refrigerant pressure sensor value is read in by the front SAM control unit with fuse and relay module (N10/1) and transmitted to the automatic air conditioning control and operating unit (N22/7) via the interior CAN.
