Overview of automatic climate control system components - GF83.40-P-9995CE
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 as of model year 2009/YoM 08

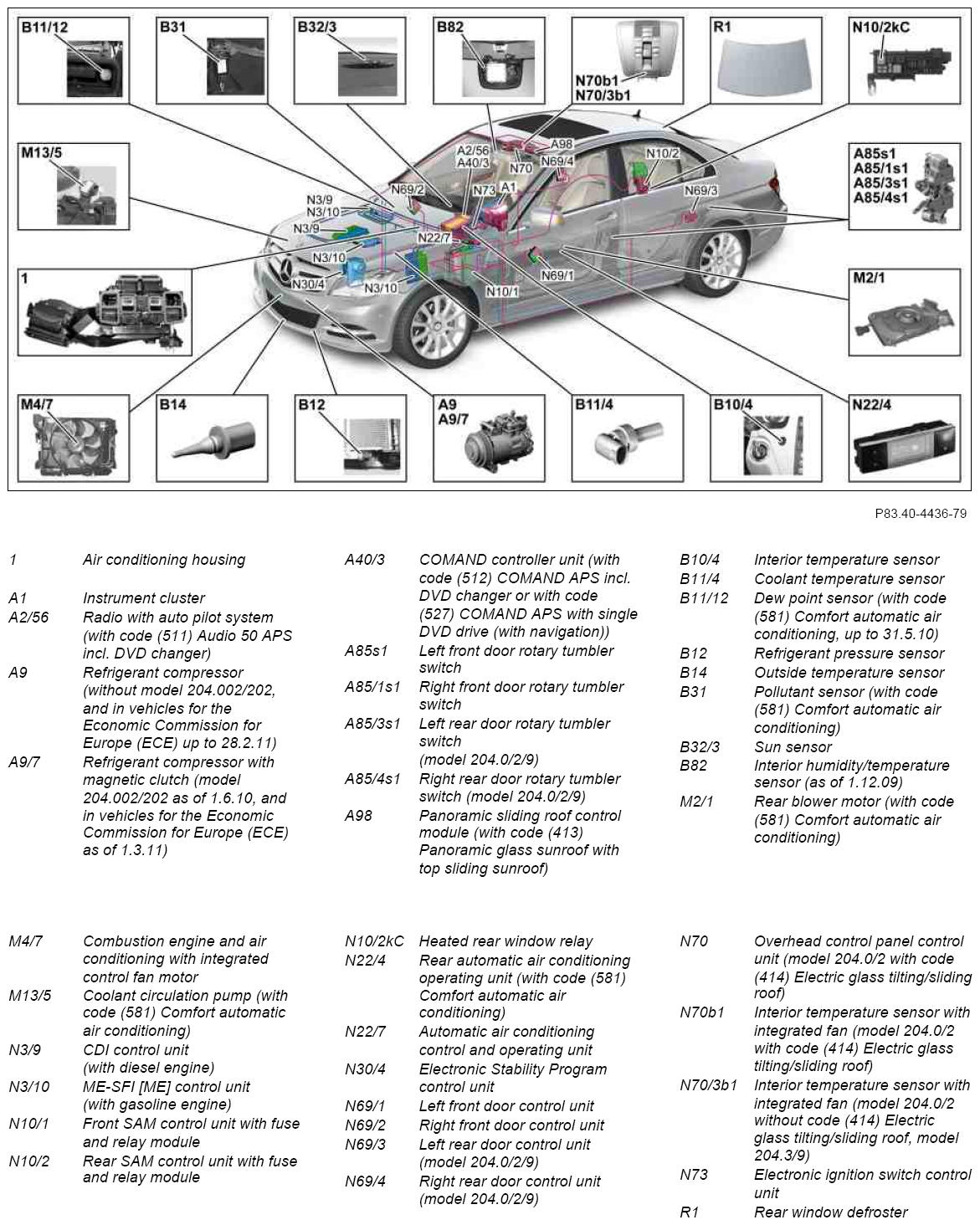

Shown on model 204.0
Shown up to 31.5.10
Shown as of 1.6.10
| Component description for instrument cluster | A1 | GF54.30-P-6000CE |
| Component description for radio with auto pilot system | A2/56 Model 204.0/2/9 with code (511) Audio 50 APS incl. DVD changer |
GF82.61-P-4112CE |
| Component description for COMAND controller unit | A40/3 Model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and without code (498) Japan version or with code (512) COMAND APS incl. DVD changer, |
GF82.85-P-3136CE |
| Model 204.0/2 as of 1.3.11 with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer, | GF82.85-P-3136CEA | |
| Model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and code (498) Japan version, | GF82.85-P-3136CEJ | |
| Component description for panoramic sliding roof control module | A98 With code (413) Panoramic glass sunroof with top sliding sunroof |
GF77.20-P-4106CE |
| Component description for ME-SFI [ME] control unit | N3/10 With engine 272.9 (except 272.982) in model 204.0/2/9 |
GF07.61-P-6000MI |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE |
| Component description for automatic air conditioning control and operating unit | N22/7 Except code (581) Comfort automatic air conditioning |
GF83.40-P-3000CEA |
| With code (581) Comfort automatic air conditioning | GF83.40-P-3000CEB | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119CE |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021CE |
| Component description for overhead control panel control unit | N70 With code (414) Electric glass tilting/sliding sunroof |
GF82.20-P-5216CE |
| Component description for electronic overhead control panel | N70/3 Without code (414) Power glass tilting/sliding roof |
GF82.20-P-5217CE |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE |
| Table of contents for automatic climate control function description | GF83.40-P-0995CE |
