Outside temperature sensor, component description - GF83.57-P-4006CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 up to Model Year 2008
Illustrated on model 204.0
Location

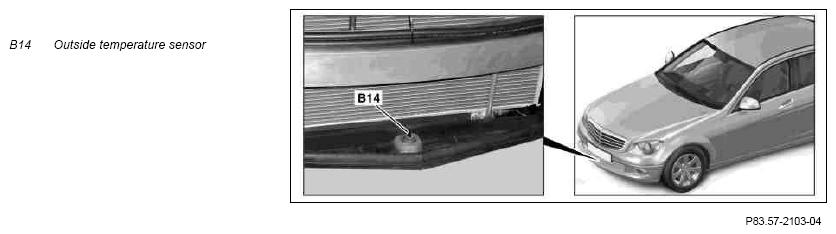

The outside temperature sensor is located in the center behind the front bumper in front of the radiator.
Task
The outside temperature sensor records the outside temperature. The outside temperature sensor is read in by the front SAM control unit with fuse and relay module (N10/1).
