Interior temperature sensor, component description - GF83.57-P-2131CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 up to Model Year 2008

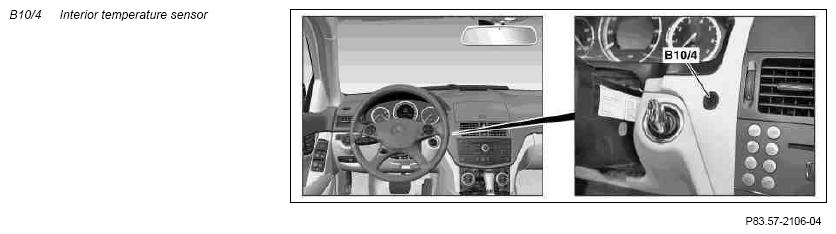

Location
The interior temperature sensor is located on the right side of the instrument panel, next to the electronic ignition lock control unit (N73).
Task
The interior temperature sensor records the temperature in the vicinity of the instrument panel, on the driver-side.
The interior temperature sensor is read in discretely by the automatic air conditioning control and operating unit (N22/7).
