Condenser, component description - GF83.40-P-2188CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 up to Model Year 2008
Illustrated on model 204.0

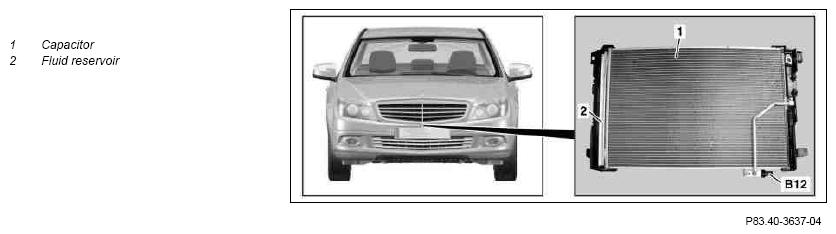

Location
The condenser with integrated fluid reservoir is located behind the radiator grille immediately in front of the radiator.
Task
The condenser ensures that the refrigerant compressed by the refrigerant compressor (A9) changes state from gas to liquid.
Function
The hot refrigerant compressed by the refrigerant compressor flows into the condenser from above. The coiled pipes and lamellae absorb this heat extremely rapidly and give it off into the outside air.
This in turn cools the refrigerant. While it is cooling down to a specific, pressure-sensitive temperature, the refrigerant condenses and is liquefied. The liquid refrigerant enters the fluid reservoir.
