Blower, component description - GF83.10-P-2050CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 /2 up to Model Year 2008

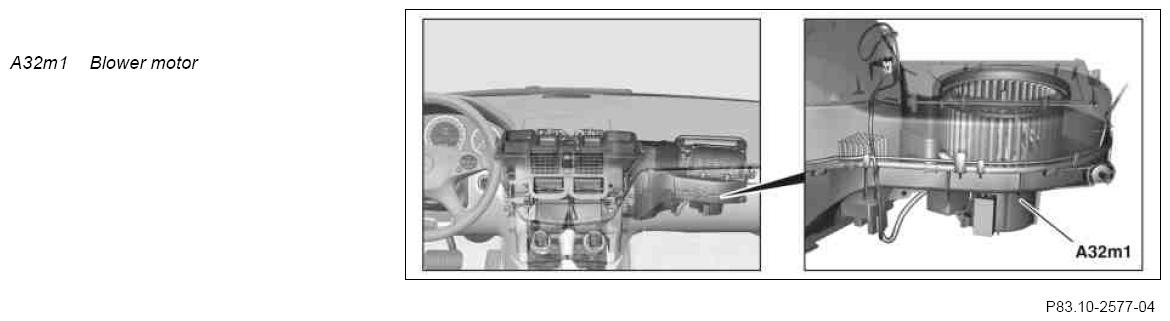

Shown on model 204.0
Location
The blower motor is located on the right below the glove compartment in the air conditioner housing.
Task
The blower motor delivers fresh air or air from the interior compartment depending on the position of the fresh air/air recirculation flap through the air conditioner housing into the vehicle interior.
Function
Depending on the blower stage, the automatic air conditioning control and operating unit (N22/7) transmits a signal to the blower regulator (A32n1). The blower regulator then regulates the operating voltage for the blower motor.
