Front emergency tensioning retractor, location/task/design/function - GF91.40-P-4000N: Notes
MODEL 215 as of 1.9.02
Driver and passenger emergency tensioning retractors

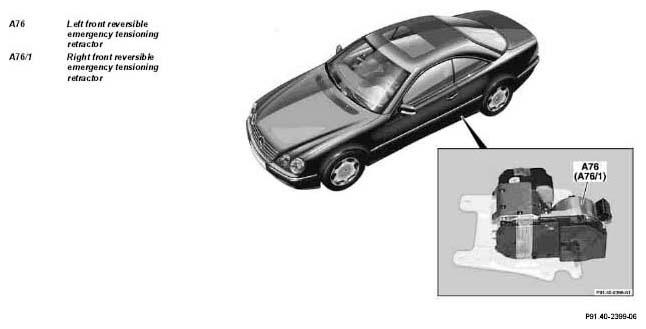

| Front emergency belt tensioner, location | The driver ETR [GUS] ignition squib (R12/1) and passenger ETR [GUS] ignition squib (R12/2) are located at the bottom of the respective B-pillar behind the plastic lining. | ||
| Front emergency belt tensioner - task | The emergency tensioning retractor serves to take up the slack in the seat belt in the event of a crash (frontal or rear end collision) and prevents the seat belt's film reel effect. The close-fitting seat belt means that vehicle occupants are exposed to the deceleration forces acting on the body at an earlier stage. | ||
| Front emergency tensioning retractor, design | GF91.40-P-4000-02T | ||
| Front emergency belt tensioner - function | GF91.40-P-4000-03T |
