Checking structure of backrest frame - AR91.10-P-3336N

MODEL 215

If emergency tensioning retractors have been triggered

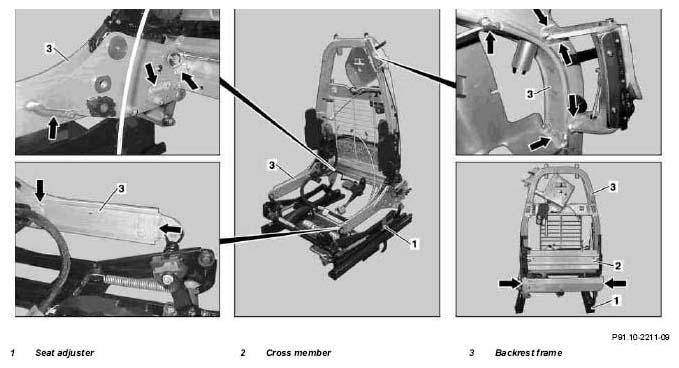

Fig 1: Identifying Backrest Frame Components

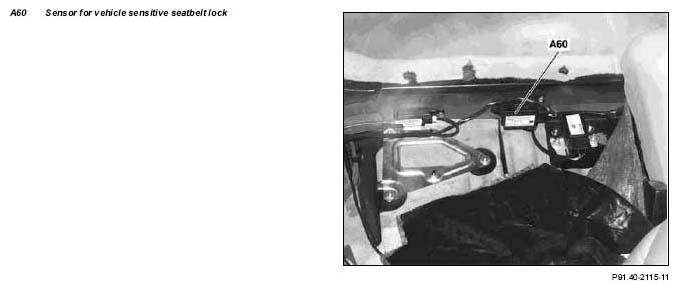

Fig 2: Identifying Sensor For Vehicle Sensitive Seatbelt Lock

	Inspecting
1	Check seatbelts for damage		AP91.40-P-9150M
	Evaluation of airbag and emergency tensioning retractors on accident vehicles		AH91.00-P-0006-01B
2	Check seat frame		AR91.10-P-3335N
3	Remove rear seat cushion		AR91.12-P-1020N
4	Replace vehicle-sensitive seatbelt lock sensor (A60) with new part below rear seat
5	Remove driver's seat cushion		AR91.10-P-1070N
6	Remove cover from seat backrest		AR91.18-P-1820N
7	Check seat structure of backrest frame (3) for deformation and cracks and check cross member (2) for sag	Cracks in area of welds (arrows). If backrest frame (3) is deformed or cracked or cross member (2) bent: cross member (2) :↓
		Replace backrest frame (3).	AR91.10-P-1450N
8	Install driver's seat cushion		AR91.10-P-1070N
9	Install cover on seat backrest		AR91.18-P-1820N
10	Check function of microswitch for checking backrest lock via STAR DIAGNOSIS
11	Check active automatic child seat recognition (ACSR) via STAR DIAGNOSIS
