Me-SFI Control Module Connector End View (N3/10)

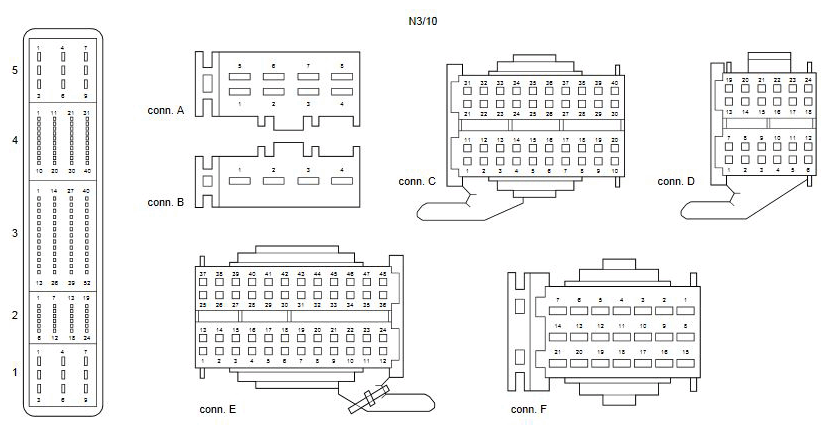

Fig 1: ME-SFI Control Module Connector End View (N3/10)

G11074261

Courtesy of MERCEDES-BENZ USA
