Etc Control Module Connector End View (N15/3)

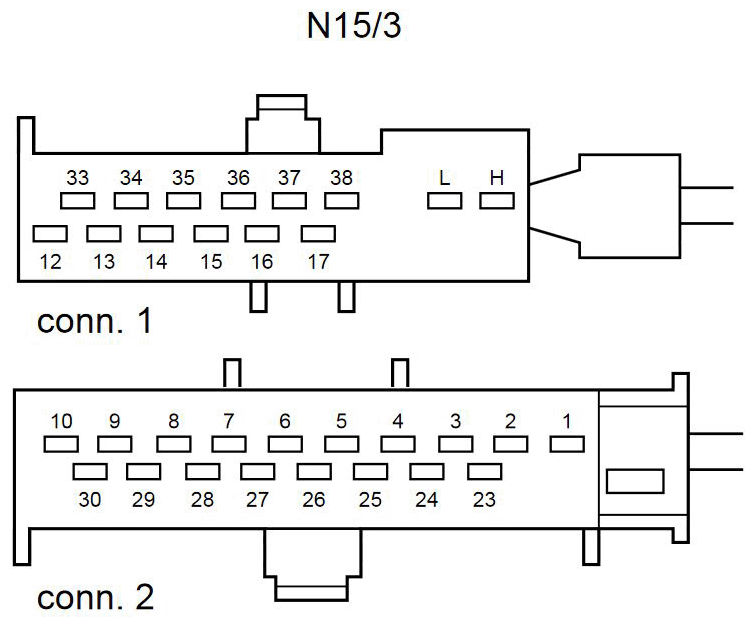

Fig 1: ETC Control Module Connector End View (N15/3)

G11074256

Courtesy of MERCEDES-BENZ USA
