Compact Harness/Diagnostic Module (OBD II), Cockpit Separation Point Connector End View (X35/66)

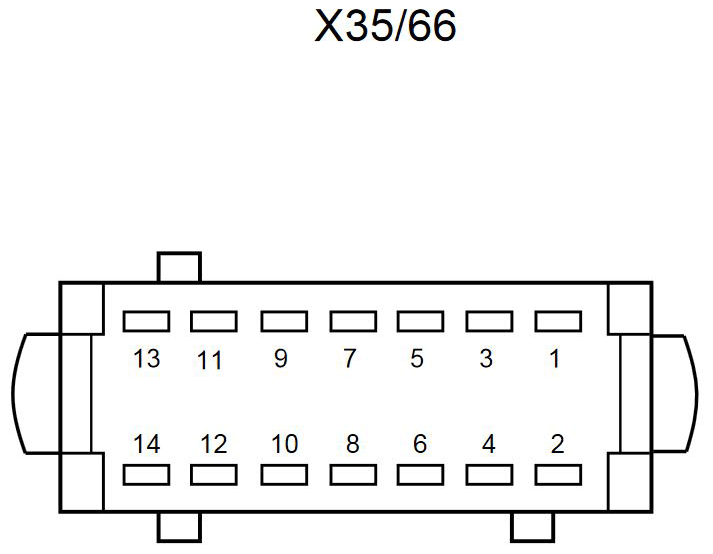

Fig 1: Compact Harness/Diagnostic Module (OBD II), Cockpit Separation Point Connector End View (X35/66)
G11074290Courtesy of MERCEDES-BENZ USA
