Location / task / design / function of shift detent - GF27.60-P-5101P

TRANSMISSION 722.6 in MODEL 171.4, 203, 209, 211, 219

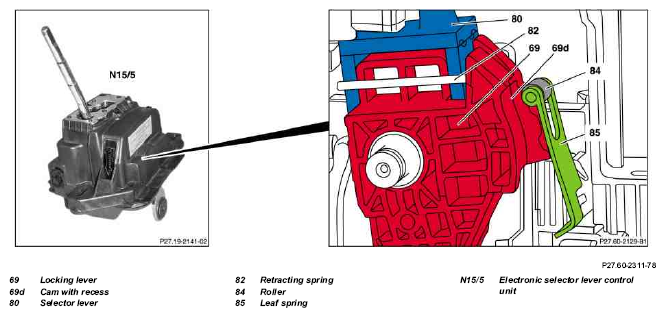

Fig 1: Identifying Shift Detent Location - Transmission 722.6 In Model 171.4, 203, 209, 211, 219

	Shift detent, location	The shift detent is integrated in the electronic selector lever module control unit (N15/5).
	Shift detent, task	Fixing the selector lever positions "R", "N" and "D".
	Shift detent, design	The shift detent consists of: the locking lever (69) rigidly connected to the selector lever (80). a leaf spring clamped in the base body (85). a roller (84) inserted in the leaf spring (85) (84).
	Shift detent, function		GF27.60-P-5101-04P
