Selector lever position information function - GF07.61-P-4029KE

ENGINE 271.921 in MODEL 203 with TRANSMISSION 722.6

ENGINE 271.940 in MODEL 203, 209 with TRANSMISSION 722.6

ENGINE 271.941 in MODEL 211 with TRANSMISSION 722.6

ENGINE 271.944 in MODEL 171 with TRANSMISSION 722.6

ENGINE 271.946 in MODEL 203 with TRANSMISSION 722.6

ENGINE 271.948 in MODEL 203 with TRANSMISSION 722.6

ENGINE 271.955 in MODEL 209 with TRANSMISSION 722.6

ENGINE 271.956 in MODEL 211 with TRANSMISSION 722.6

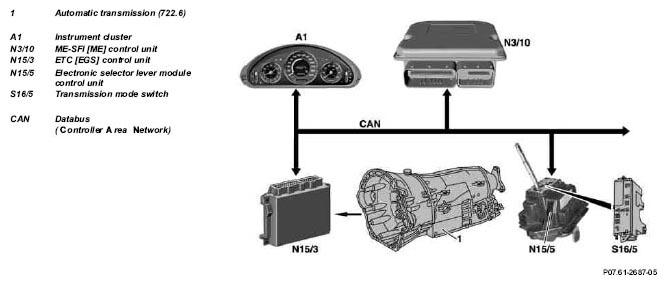

Fig 1: Selector Lever Position Information Function (Engine 271)

The selector lever positions "P" and "N" are detected by the transmission mode switch via the electronic selector lever module control unit.

The ETC [EGS] control unit detects the momentary drive position via a contact in the automatic transmission.

The information from the ETC control unit and the electronic selector lever module control unit is sent to the ME control unit via the CAN databus.

The ME control unit requires the information and also for "STARTING", for the deceleration fuel shutoff, the idle speed control, the TWC heating-up and for the transmission overload protection.

ME-SFI [ME] control unit, component description

N3/10

GF07.61-P-6000KE
