ME-SFI warming-up control, function - GF07.61-P-3022KE

ENGINE 271.921 in MODEL 203

ENGINE 271.940 in MODEL 203, 209

ENGINE 271.941 in MODEL 211

ENGINE 271.944 in MODEL 171

ENGINE 271.946 in MODEL 203

ENGINE 271.948 in MODEL 203

ENGINE 271.955 in MODEL 209

ENGINE 271.956 in MODEL 211

The fuel-air mixture is further enriched via the warm-up control after start and post-start enrichment. The warm-up control compensates for the fuel which precipitates on the still cold engine parts.

An additional quantity of fuel is added to the engine by the ME control unit in line with the performance map. The injection time is extended accordingly for this purpose.

The warm-up control is dependent on:

• Coolant temperature
• Intake air temperature
• Engine speed
• Engine load
• Correction programming with STAR DIAGNOSIS

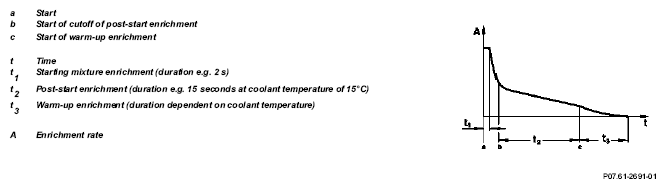

  Fig 2: Warming-Up Enrichment Graph

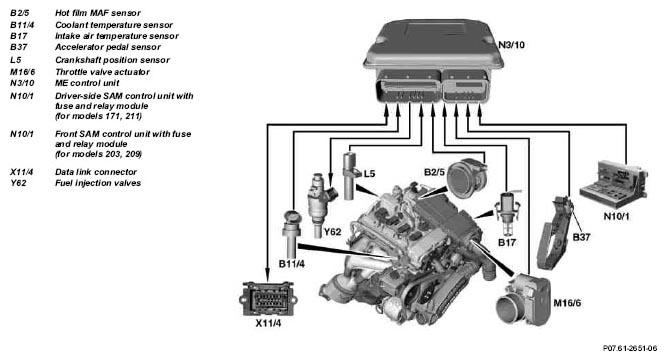

	Component description for fuel injection valves	Y62	GF07.03-P-6010KE
	Component description for the crankshaft position sensor	L5	GF07.04-P-6010KE
	Component description for the coolant temperature sensor	B11/4	GF07.04-P-6040KE
	Component description for the intake air temperature sensor	B17	GF07.04-P-6070KE
	Component description for the hot film MAF sensor	B2/5	GF07.07-P-6000KE
	Component description for the ME control unit	N3/10	GF07.61-P-6000KE
	Component description for the accelerator pedal sensor	B37	GF30.20-P-2010KE
	Component description for the throttle valve actuator	M16/6	GF30.20-P-2020KE
